Replace Vacuum Cleaner Plug: A Practical Safety Guide
Learn how to safely replace a damaged vacuum cleaner plug with a practical, maintenance-focused approach. Safety checks, compatible plug selection, and a tested repair process for homeowners and pet owners.
By the end of this guide, you will be able to safely replace a damaged vacuum cleaner plug, identify plug types, and verify the repair works. You’ll gather basic tools, unplug the unit, and follow a step-by-step replacement process. This task emphasizes safety, proper wiring, and testing to prevent shock or fire hazards.
Why replacing a vacuum cleaner plug matters
A damaged plug is more than an annoyance—it's an electrical safety risk. Worn or cracked insulation, bent prongs, or a loose connection can lead to arcing, heat buildup, or short circuits. Over time, the plug can fail under load, potentially causing shocks or fires. Replacing the plug is often cheaper and less disruptive than replacing the whole cord or the vacuum itself, and it helps extend the life of an aging unit. For homeowners and pet owners, maintaining a safe power connection is part of responsible appliance care.
From a maintenance perspective, replacing the plug with a properly rated, compatible part ensures the vacuum operates under current safety standards. This is especially important if you’ve noticed heat at the plug, a burning smell, or any discoloration around the outlet. When done correctly, a plug replacement restores reliable power delivery without compromising the cord’s integrity.
According to Vacuum Cleaner Guide, taking a proactive approach to cord and plug maintenance reduces the risk of electrical hazards in everyday households. The team emphasizes matching the plug to the cord and unit, using UL-listed components, and following standard wiring practices to ensure long‑term safety.
toolsMaterialsRequiredNotePool0sForBlock1
Tools & Materials
- replacement plug (polarized 2-prong or grounded 3-prong, match to cord)(Ensure the plug is rated for the vacuum cord gauge and amperage; UL-listed is preferred.)
- screwdriver set (Phillips and flathead)(Have multiple sizes on hand to fit terminal screws securely.)
- wire stripper/cutter(Useful for cleanly preparing conductors and trimming insulation.)
- crimp connectors or insulated terminals(Choose appropriate size for conductor type and ensure solid crimp.)
- heat shrink tubing or electrical tape(Insulate exposed conductors and protect against shorts.)
- multimeter (optional but recommended)(Use for continuity and basic safety checks.)
- extra sheath or heat-resistant sleeves(Prevent abrasion near the strain relief.)

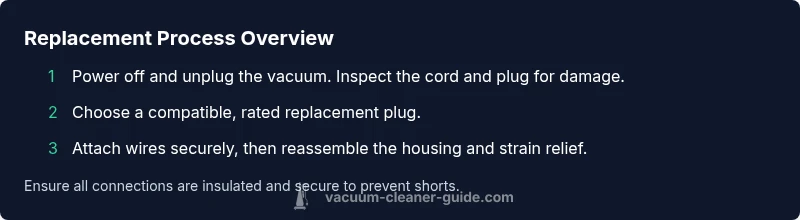

Steps
Estimated time: 45-75 minutes
- 1
Unplug and inspect the workspace
Begin by unplugging the vacuum from the wall and turning off the circuit if you’re uncertain about outlet safety. Inspect the area for moisture, spills, or dust, and set up a dry, well-lit workspace. This initial check reduces the risk of electrical shock and helps you identify obvious cord or plug damage before you start.
Tip: Use a flashlight to inspect the plug and cord for cuts or discoloration, especially at the base of the plug where damage is common. - 2
Remove the old plug housing
loosen screws holding the plug plate and carefully separate the plug from the cord. Note how wires are terminated (which conductor connects to which terminal). Use the screwdriver to avoid bending terminals, and avoid pulling on the cord itself to prevent further damage.
Tip: Take a quick photo of the wiring before detaching to reference later. - 3
Prepare the wires for the new plug
Trim any frayed strands and strip about 1/2 inch of insulation from each conductor. Twist wires neatly and ensure they are clean, dry, and free of corrosion. If the old insulation is brittle, consider replacing a small section of cord near the plug.
Tip: Keep wire lengths consistent and avoid nicking copper conductors while stripping. - 4
Attach wires to the new plug terminals
Connect each conductor to its matching terminal on the new plug (line to brass or hot, neutral to silver, ground to green). Tighten screws firmly, ensuring no loose strands. If the plug has a grounding terminal, verify a solid ground connection.
Tip: Use the correct terminal type (screw-down vs push-in) and ensure no stray strands extend beyond the terminal. - 5
Secure strain relief and reassemble
Reinstall the strain-relief clamp to prevent the cord from pulling out or moving inside the plug. Reassemble the plug housing and reseal the outer jacket to protect the connections from dust and moisture.
Tip: Do not skip strain relief; a loose cord can lead to future failures or safety hazards. - 6
Test the repair
With the unit unplugged, perform a baseline check using a multimeter if available. When ready, plug into a test outlet, power on the vacuum briefly, and listen for abnormal sounds or heat near the plug. If anything seems off, unplug and recheck connections before use.
Tip: Never operate the unit for extended tests on a live outlet; observe for 30–60 seconds of safe operation.
FAQ
Is it safe to replace a vacuum cleaner plug myself?
It can be safe if you follow strict electrical safety steps: unplug, dry hands, inspect cord, and use the correct replacement plug. If you’re unsure, consult a professional.
You can replace a plug safely by following proper safety steps and using the right parts; if you’re unsure, seek professional help.
Do I need to replace the whole cord if the plug is damaged?
Only the plug may be replaced if the cord insulation and conductors are intact. If the cord is damaged, replacing the entire cord is usually the safer choice.
If the cord is damaged, it’s often safer to replace the entire cord rather than just the plug.
What plug types are common for vacuums?
Most vacuums use either two-prong polarized plugs or three-prong grounded plugs. Check the unit’s label or manual to confirm compatibility.
Two-prong or three-prong plugs are common; verify the correct type for your vacuum.
Will replacing the plug affect warranty?
Warranties vary by manufacturer. Replacing a cord or plug may affect coverage; check the manual or contact the manufacturer to confirm.
Warranties can be affected by DIY cord work; verify with the maker before you begin.
How long does plug replacement take?
A simple plug replacement, if you have the right parts and tools, typically takes under an hour. More complex situations may take longer.
Usually under an hour for a straightforward plug swap; longer if cord or wiring is damaged.
Where can I buy replacement plugs?
Replacement plugs can be found at hardware stores, electrical suppliers, or online retailers. Ensure you buy an UL-listed and compatible plug for your cord.
You can buy a compatible, UL-listed plug at hardware stores or online.
Watch Video
The Essentials
- Unplug before starting and inspect for visible damage
- Match plug type and rating to the vacuum cord and outlet
- Secure strain relief to prevent cord movement
- Test carefully and monitor for heat or smell after replacement
- When in doubt, seek professional help or replacement of the cord
