How to Fix Vacuum Cleaner Power Cord: Safe Step-by-Step Guide
Learn to safely diagnose and repair a frayed or damaged vacuum cleaner power cord with practical steps, tools, and safety precautions from Vacuum Cleaner Guide.
According to Vacuum Cleaner Guide, you can determine whether a damaged vacuum cleaner power cord is repairable at home, follow safe steps to fix or reterminate the cord, and know when to seek professional service. This guide outlines the essential safety checks, required tools, and a clear plan to restore power connectivity while protecting you and your home from shocks or fire.
Understanding common failure points and risks
According to Vacuum Cleaner Guide, most power-cord problems arise from wear, pinch points, and overloaded strain relief. This section explains how to assess damage without harming internal components, and outlines safe at-home options when repair is feasible. If you can see exposed copper, splits in insulation, or a warm cord during use, stop and consider replacement rather than repair. The goal is to prevent electric shock, fire, or motor damage while keeping your vacuum functional.
Safety first: when to repair vs replace
Electric repair work carries inherent risks. Vacuum cleaners operate on household mains voltage, and damaged cords can shock or short-circuit if mishandled. If the plug or cord insulation is compromised, or if the cord sheath is cracked, do not continue. Situations like frayed insulation near metal parts, scorch marks, or bent grounding blades are strong signals to stop and seek professional help. Even when repair seems simple, a failed repair can create hidden hazards; prioritize safety above convenience.
Diagnosing cord damage: visible signs and tests
Inspect the entire length of the cord for cracking, insulation wear, or heat-induced discoloration. Gently flex the cord to find crack points; listen for intermittent arcing sounds or a tingling sensation when touching metal parts. If you have access to a multimeter, test continuity between the plug and the vacuum’s internal wiring, and ensure there is no short to ground. Document any worn spots with photos to guide replacement decisions and avoid assuming that a working plug means the cord is safe.
Repair options: repair vs replacement
In most cases, you will either replace the cord with a compatible replacement or reterminate the existing cord ends with proper connectors. Repairs usually involve cutting back to clean copper, stripping insulation to the correct length, crimping or soldering new terminals, and sealing with heat shrink or electrical tape. If the vacuum’s internal terminals or switch housing show damage, replacement or service is recommended. For many models, near-field repair is impractical and unsafe; consider professional service.
Choosing the right replacement cord and connectors
Match the cord to your model’s voltage, current rating, and plug configuration. Choose a cord with a similar gauge (AWG) and same number of conductors, and verify the strain-relief design. Use heat shrink tubing or high-quality electrical tape to insulate every exposed conductor. If you’re unsure, consult the service manual or contact the manufacturer for the exact cord type. A proper, well-secured connection reduces heat buildup and extends cord life.
Maintenance tips to extend cord life
Use a cord organizer to prevent kinks, store the vacuum away from tight corners, and avoid yanking the cord when moving the unit. Regularly inspect the cord for wear, especially near the plug and the entry point where the cord meets the housing. Keep the area around the cord entry clean and unobstructed to reduce stress on the strain relief. Small preventive steps now save bigger repairs later.
Tools & Materials
- replacement power cord compatible with your vacuum model(Ensure gauge (AWG) and plug type match the original; check for proper voltage rating.)
- screwdriver set (Phillips and flat)(Needed to remove housing screws and terminal screws.)
- wire cutters/strippers(For stripping insulation and preparing conductors.)
- crimp connectors or soldering supplies(Use crimp connectors or solder for reliable terminations.)
- heat shrink tubing or electrical tape(To insulate and protect exposed conductors.)
- multimeter (optional)(Test continuity and resistance if available.)
- soldering iron (optional)(Use only if you’re comfortable with soldering.)
- q-tips/isolating materials(For cleaning terminal surfaces before reattachment.)

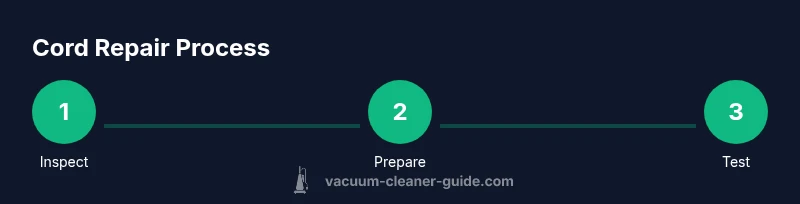

Steps
Estimated time: 45-75 minutes
- 1
Disconnect and assess safely
Unplug the vacuum and unplug from any power strip. Visually inspect the cord for obvious signs of damage and note where wear is concentrated. If you can't unplug safely or smell burning, stop and seek professional help.
Tip: Always unplug first and work on a dry surface. - 2
Remove outer housing and access cord entry
Use the appropriate screwdriver to remove screws securing the housing. Gently pry apart the shell to reveal the strain relief and the cord’s entry point, without bending internal wires.
Tip: Keep screws organized so you can reassemble easily. - 3
Identify cord type and disconnect from terminals
Note the wire color order and take a photo for reference. Loosen terminal screws and carefully detach the cord from the internal wiring, avoiding damage to any nearby components.
Tip: Color coding helps ensure correct reattachment. - 4
Prepare the new cord and conductors
Cut the new cord to length, strip insulation to expose copper conductors, and trim any frayed strands. Prepare a clean boundary where you will terminate or crimp the new leads.
Tip: Avoid nicking copper; keep conductor ends clean. - 5
Attach wires to terminals and insulate
Connect new conductors to the same terminal order as the old cord. Tighten screws firmly and apply heat shrink or electrical tape to cover exposed copper.
Tip: Check that each connection is secure before testing. - 6
Reassemble housing and test cautiously
Reinstall the housing, ensuring strain relief seats correctly. Plug into a known good outlet and test basic function before heavy use; observe for warmth or sizzling smells.
Tip: Test with no load initially to ensure safe operation. - 7
Verify with measurements and label
If available, use a multimeter to confirm continuity and insulation resistance. Label the repairs and note the date for future maintenance.
Tip: Document the cord type and date for warranty or service records.
FAQ
Is it safe to repair a damaged vacuum cord at home?
Repairing a damaged cord at home can be safe if you are confident with electrical work, use proper tools, and ensure all insulation and connections are sound. If there is severe damage or overheating, seek professional service. Always unplug the unit before starting.
You can fix small issues if you're confident with basic electrical work; otherwise, it's safer to consult a professional.
What signs indicate I should replace rather than repair the cord?
If insulation is cracked, the plug is damaged, or there are scorch marks, replacement is the safer option. Extensive wear near the housing or multiple frayed spots mean a full cord replacement is advisable.
Cracked insulation or scorch marks mean replacement is safer.
Does repairing the cord affect the vacuum's warranty?
Repair work can affect warranty eligibility depending on the manufacturer and the nature of the repair. Always check the warranty terms and, if in doubt, contact the manufacturer or a certified repair service.
Check the warranty terms; repairs may affect coverage.
What tools do I need to replace the cord?
You typically need a screwdriver, wire cutters/strippers, replacement cord, connectors or soldering equipment, and insulation materials like heat shrink tubing or electrical tape.
You’ll need basic hand tools and a replacement cord.
How do I know what gauge cord to buy?
Match the cord gauge (AWG) to the original cord and ensure the current rating meets or exceeds the vacuum’s power draw. When in doubt choose the same gauge and consult the service manual.
Use the same or higher gauge as the original.
When should I replace the whole vacuum instead of repairing the cord?
If internal wiring is damaged beyond the cord, the switch or motor shows signs of failure, or a repair seems unreliable or unsafe, replacing the vacuum may be the safer option.
If internal components are damaged, consider replacement.
Watch Video
The Essentials
- Inspect the cord for visible damage before use.
- Use the correct gauge and connector type.
- Stop if damage is extensive or uncertain.
- Test continuity and insulation before reusing.
- Regular maintenance extends cord life.
