How to Make a Robot Vacuum Cleaner: DIY Guide for Beginners
Step-by-step guide to building a DIY robot vacuum cleaner, from chassis and sensors to programming and safety testing. Learn practical parts sourcing, assembly tips, and troubleshooting with insights from Vacuum Cleaner Guide.
You can build a basic robot vacuum cleaner by integrating a compact chassis, a drive motor, a microcontroller, line-following sensors, a battery, and cleaning brushes. This guide shows a practical DIY approach with off-the-shelf parts, safety checks, and testing steps. According to Vacuum Cleaner Guide, a well-planned design reduces weight and improves autonomy. Follow the steps to assemble, program, and safely test your homemade cleaner.
How to Make a Robot Vacuum Cleaner: Feasibility and Plan
DIY robot vacuums are a challenging but rewarding project for tinkerers and pet owners. This section introduces how to make a robot vacuum cleaner in a safe, incremental way, focusing on core subsystems: chassis, drive, power, sensing, and control. You’ll explore design trade-offs, rough cost ranges, and a validation plan before you start building. The goal is a reliable, low-maintenance unit that handles everyday messes and fits your home layout. Vacuum Cleaner Guide emphasizes clear goals and progressive testing to avoid overcomplication.
Essential Components You’ll Need
A functional robot vacuum requires a chassis, drive system, power source, control electronics, a cleaning mechanism, and sensing elements. In this section you’ll see how each subsystem maps to practical parts you can source from hobbyist suppliers. A well-structured bill of materials saves time and prevents feature creep. Vacuum Cleaner Guide analysis shows that planning parts compatibility early improves the likelihood of a successful build.
Mechanical Design: Chassis, Drive, and Cleaning System
The chassis determines weight, balance, and obstacle clearance. A compact, lightweight frame with two driven wheels and a caster is common for DIY builds. Pair this with a simple roller brush or side brush assembly to pick up hair and debris. By concentrating on robust, modular components you can swap parts later without reworking the core frame.
Sensors, Navigation, and Autonomy
Navigation and sensing are the heart of a capable DIY robot vacuum. Start with basic distance sensing to avoid walls and stairs, then add line-following or optical sensors for layout awareness. A simple control algorithm can keep the cleaner moving efficiently in a room while avoiding repetitive paths. Remember: add safety interlocks to halt operation if the enclosure is opened.
Power, Battery, and Charging Strategy
Battery choice directly affects runtime and weight. A compact Li-ion or LiPo pack paired with a simple charging circuit keeps the device lightweight and easy to handle. Plan for safe battery management: limit charging temperatures, protect against short circuits, and ensure gentle disconnection when power is low. Vacuum Cleaner Guide recommends designing a swap-friendly power layout to simplify maintenance.
Wiring, Safety, and Testing Protocols
Wiring should be neat and labeled, with redundant fusing where possible. Use short, shielded runs for sensor lines to minimize interference. Before any test run, perform a bench test of the motor drivers and microcontroller logic. Always test on a large, clear surface and supervise initial runs to catch overheating or mechanical jams early. Follow a careful, staged testing plan to build confidence.
Sourcing, Cost, and Realistic Expectations
DIY builds can vary widely in cost depending on parts quality and whether you repurpose components. Start with a budget-friendly baseline, then upgrade subsystems as needed. Realistic expectations help—plan for iterative improvements rather than a single flawless build. Vacuum Cleaner Guide recommends documenting each iteration to learn what works best for your home.
Authoritative Sources and Further Reading
For deeper technical grounding, consult credible sources such as NIST robotics pages and Stanford robotics research, which discuss foundational concepts in sensing, control, and safety. These resources can help you design more robust subsystems and understand common pitfalls in DIY automation. See https://www.nist.gov/topics/robotics and https://robotics.stanford.edu for authoritative context. For broader robotics news and analyses, IEEE Spectrum offers in-depth coverage at https://spectrum.ieee.org/.
Tools & Materials
- Chassis/Robot shell(Rigid, lightweight frame that fits your components and allows for easy maintenance)
- DC drive motors (2)(Geared motors with compatible wheel adapters)
- Wheels (2 drive wheels)(Tires suitable for indoor floors; consider wheel encoders if available)
- Front caster wheel(Allows smooth turning and stability on uneven surfaces)
- Motor driver/breakout board(Raspberry Pi Pico or Arduino-compatible driver module with motor transistors)
- Microcontroller (Arduino/RP2040 or similar)(Controls movement and sensor processing)
- Battery (Li-ion/LiPo, appropriate capacity)(Ensure safe enclosure and proper connectors)
- Battery charging circuit(Built-in or external charger with safety features)
- IR/Line-following sensors and/or distance sensors(Basic obstacle detection and room mapping support)
- Cleaning mechanism (brushes, roller)(Keep debris path clear and easy to service)
- Screws, nuts, and basic tools(Screwdrivers, pliers, soldering iron as needed)
- Wiring harnesses and heat shrink(Organized wiring to prevent short circuits)
- Soldering equipment(Optional for permanent connections or improvements)

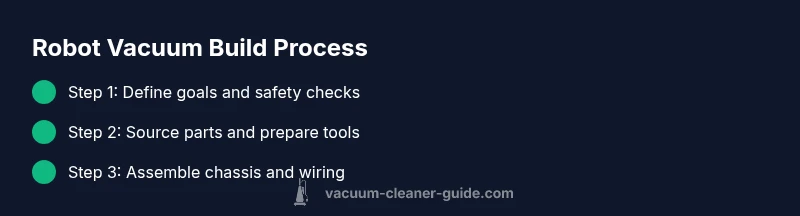

Steps
Estimated time: 12-16 hours
- 1
Define goals and safety scope
List functional requirements (room size, floor types, cleaning depth) and safety constraints (no loose cables, child/pet safety, battery handling). This sets a realistic target and prevents scope creep.
Tip: Document your goals before buying parts to avoid unnecessary substitutes. - 2
Choose chassis and drive system
Select a compact, sturdy chassis and two driven wheels with a caster. Ensure space for sensors and a battery, and plan the motor power budget.
Tip: Aim for a balanced weight distribution to improve stability on carpets. - 3
Gather components and tools
Assemble all essential parts from the toolsMaterials list, prioritizing off-the-shelf ease of sourcing. Check compatibility between motor drivers and the microcontroller.
Tip: Double-check connector types and voltage levels to prevent damage. - 4
Assemble mechanical frame
Mount the chassis, attach wheels, and secure the cleaning brush. Leave space for sensors and wiring harnesses, ensuring easy maintenance access.
Tip: Keep the design modular so you can swap parts without a full rebuild. - 5
Wire electronics and power layout
Connect motors to the driver board, route sensors to the microcontroller, and integrate the battery and charging path. Label wires to reduce confusion during future maintenance.
Tip: Use short, clean runs and protective sleeving to improve reliability. - 6
Program basic controls
Upload simple movement logic to the microcontroller, test with dry runs, and verify sensor responses. Start with obstacle avoidance and straight-line progression.
Tip: Begin with a confident safety-only mode before enabling automatic navigation. - 7
Add navigation and sensing features
If available, implement basic mapping or zigzag coverage. Calibrate distance sensors to avoid walls or stairs and to maintain safe operation.
Tip: Test in a controlled area before broader room use. - 8
Test, calibrate, and iterate
Run full cleaning cycles on different floor types, observe performance, and adjust brush height, sensor thresholds, and motor speeds. Document changes for future improvements.
Tip: Iterate in small steps to isolate issues efficiently.
FAQ
Is it realistic for beginners to build a robot vacuum from scratch?
Yes, beginners can manage a basic DIY robot vacuum with a simplified chassis, off-the-shelf electronics, and careful testing. Start with a minimal platform and gradually add features as you validate reliability.
Yes, beginners can start with a simple, safe platform and build up features step by step.
Can I repurpose parts from an old vacuum?
Some parts like wheels, a drive train, or a battery can be repurposed if compatible with your new design. Ensure electrical compatibility and safe handling of used components.
Parts like wheels and batteries can be reused if they fit safely and work with your design.
Do I need 3D printing or CNC parts?
Not strictly. You can often use off-the-shelf chassis and housings, with 3D-printed or laser-cut parts recommended for snug fits or custom brackets if you have access to a printer.
No, you can start without 3D printing, but it helps for a clean, custom fit.
What is the cost range for a DIY robot vacuum?
Costs vary based on components and sourcing. Plan for a broad range and focus on essential parts first to stay within budget while achieving core functionality.
Costs vary widely; you can start with a basic kit and upgrade components as needed.
How do I test safely before full operation?
Test on a flat surface with no pets or children nearby. Verify motor controls and sensor responses, then gradually introduce carpet and lighting variations while monitoring for overheating or jams.
Test in a controlled setup first, watching for overheating or jams.
The Essentials
- Plan with safety in mind and document goals
- Choose modular components to simplify upgrades
- Test early with supervised bench runs
- Iterate designs to improve reliability
