How to Make a Vacuum Cleaner with a DC Motor
Learn to build a DC motor-powered vacuum at home, covering motor choice, airflow design, filtration, safety, and testing. A practical step-by-step guide from Vacuum Cleaner Guide.
Goal: build a DIY vacuum cleaner powered by a DC motor. By the end, you’ll know how to select a compatible DC motor, design a basic airflow path, attach a filtration or dust-separator, and test suction safely. This guide assumes a basic workshop and common tools. You’ll gain hands-on experience with electronics, mechanical assembly, and practical troubleshooting while creating a functional, low-cost vacuum for light cleaning tasks.
Why Build Your Own Vacuum: Benefits and Considerations
Building a vacuum from a DC motor can be a rewarding project for homeowners who want a compact, customizable cleaner tailored to pet hair, carpeted surfaces, or hard floors. According to Vacuum Cleaner Guide, a DIY approach can reduce upfront costs and teach you practical skills in electronics, airflow design, and materials selection. The project also offers a chance to experiment with suction power, filtration efficiency, and noise levels to match your space. However, it requires careful planning, adherence to electrical safety practices, and a realistic assessment of expected performance compared with off-the-shelf units. If you enjoy tinkering and prioritizing customization, this build can yield a compact, purpose-built cleaner that fits unique cleaning tasks and tight storage spaces.
DC Motors for DIY Vacuums: What you need to know
A DC motor provides straightforward speed control and a compact form factor, which makes it attractive for handheld or lightweight stand-alone vacuums. Key considerations include operating voltage (commonly 12V or 24V in hobby projects), no-load speed, stall current, and cooling needs. You’ll want a motor with sufficient torque to overcome typical residential debris and an enclosure that tolerates dust. Pair the motor with a suitable power source and a controller or switch to regulate operation. Remember, higher voltage generally means higher potential suction but also greater current draw and heat. Choosing the right motor involves balancing these factors with your filtration and dust bin design.
Design Principles: Airflow, Filtration, and Dust Collection
Efficient suction starts with a clear airflow path from intake to exhaust. Avoid sharp bends that cause pressure drops, and use smoothly rounded ducts or hoses. Select a dust collection chamber that’s easy to empty and clean, with a simple filtration stage—preferably a washable pre-filter and a filter rated for fine particles. For pet hair or fine dust, a secondary filter such as a HEPA-grade element helps trap allergens. The overall volume of the dust bin and the diameter of the intake influence how much debris you can collect before emptying. Aim for a balanced design where the motor, fan, and filtration complement each other rather than compete for airflow.
Choosing a Power Source and Battery Safety
Powering a DC motor requires a reliable supply that matches the motor’s voltage and current needs. A sealed lead-acid or lithium-ion battery pack can provide portability, but you must manage heat, charging safety, and battery health. If you opt for a bench power supply for testing, ensure it has current limiting to prevent motor stalling from causing spikes. Always include proper fusing, a switch, and a safe enclosure for all electrical connections. Polarity must be correct to avoid motor damage, and all wiring should be rated for the expected current. When in doubt, start with a lower voltage and gradually increase once you confirm the airflow and filtration work as intended.
Basic Shell and Filtration Layout
The external shell should be lightweight, durable, and easy to disassemble for maintenance. A simple cylindrical housing or rectangular chassis can work well. Use a cyclone or separator if possible to reduce filter load and extend service life. Inside, place a dustbin, a primary filter, and a secondary filter stage. Ensure there’s a plain surface or gasket between the motor housing and the dust container to prevent dust leakage. Quick-access latches improve ease of emptying and cleaning, which is especially important when dealing with pet hair or fine dust. Make sure all sealants and adhesives are non-toxic and heat-resistant to avoid off-gassing during use.

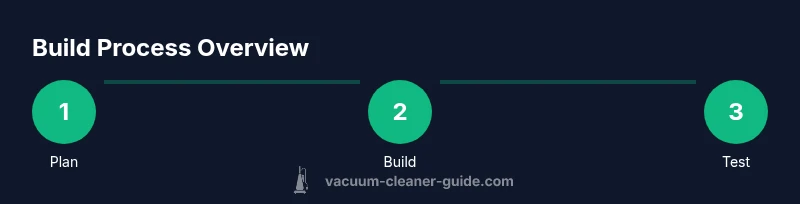

Step-by-Step Build Overview
This section provides a high-level blueprint of the build process. You’ll integrate a DC motor with a power source, route intake air through a dust collection chamber, install filtration, and secure an on/off control. The primary goals are achieving adequate suction for your cleaning tasks, maintaining safe operating temperatures, and ensuring easy maintenance. You’ll validate airflow, test suction at multiple positions, and verify that all electrical connections remain insulated during use. The following steps will be executed in detail in the dedicated STEP-BY-STEP block.
Testing and Safety Protocols for Electrical DIY Projects
Before powering anything, double-check all wiring insulation, battery connections, and switch integrity. Begin with bench testing: run the motor at low voltage to confirm rotation and listen for unusual grinding or overheating. Use a multimeter to measure current draw and ensure it stays within safe limits. Test suction by placing debris in the intake and observing collection speed and filtration performance. Verify there are no visible air leaks around seals and joints. If you notice abnormal heat buildup or smoke, immediately disconnect power and re-evaluate connections and airflow components. Always operate in a well-ventilated area and wear protective eyewear when testing with dust and debris.
Maintenance, Longevity, and Cleaning Routines
Regular maintenance extends the life of your DIY vacuum. Clean or replace filters as needed, wipe down the dust chamber to prevent clogs, and inspect seals for wear. If your motor accumulates dust, consider adding a pre-filter or cyclone to reduce debris reaching the fan. Check electrical connections periodically to ensure there’s no oxidation or loose wires. Store the device with the dust bin removed to prevent moisture buildup. Document any issues you encounter so you can adjust your design in future iterations.
Feasibility, Costs, and Realistic Expectations
DIY builds range in cost based on materials, motor selection, and filtration. Expect to allocate funds for the motor, battery or power supply, filters, housing, and basic fasteners. Time investment varies with skill and tooling; plan for several hours to assemble and test, plus additional time for refinements. Real-world performance may fall short of professional vacuums in maximum suction or runtime, but you can tailor the design to your specific needs—pet hair cleanup, hard floors, or light-duty carpet—while keeping costs reasonable.
Tools & Materials
- DC motor (12V or 24V, appropriate RPM)(Choose a motor with enough torque for suction; consider brushless for longevity.)
- Power source (battery pack or DC power supply)(Match voltage to motor; include current rating and protection.)
- Switch or speed controller(Use a robust on/off switch; consider a simple PWM controller for speed control.)
- Dust collection canister or housing(Prefer a cylindrical or rectangular tub with easy access.)
- Filtration (pre-filter and secondary filter, HEPA if possible)(Washable pre-filter helps extend filter life.)
- Dust bin and seals(Leak-free seals prevent dust escape.)
- Hose, ducts, and adapters(Smooth bends minimize airflow loss.)
- Cyclone/separator (optional but recommended)(Reduces filter loading and extends life.)
- Wiring, connectors, and insulation(Use heat-shrink tubing and insulated crimps.)
- Multimeter and basic hand tools(Check continuity and current draw; have pliers, screwdrivers, and a soldering iron.)
Steps
Estimated time: Estimated total time: 4-6 hours
- 1
Plan and safety check
Before touching parts, sketch the airflow path and determine motor-voltage compatibility. Verify you have PPE and a safe workspace. Clarify where the battery or power supply will be housed and how it will be accessed for maintenance.
Tip: Document your planned pathway and label parts to prevent mix-ups. - 2
Mount the motor and attach the impeller
Secure the motor in a frame or housing with vibration damping. Attach a compatible impeller or fan wheel to the motor shaft, ensuring a tight, concentric fit. Check alignment to minimize wear.
Tip: Use a shaft collar or clamp to prevent wobble during operation. - 3
Build the dust chamber and intake
Assemble the dust bin and connect the intake hose to the clean-air side. Ensure all joints have gaskets or seals to prevent leaks and that the dust chamber is easy to remove for emptying.
Tip: Keep intake openings away from fresh air sources to avoid accidental contamination. - 4
Install filtration stages
Place a washable pre-filter near the dust bin outlet, followed by a finer secondary filter. Seal gaps to avoid bypass leaks and maximize filtering efficiency.
Tip: Choose filters sized for your housing and check replacement cycles. - 5
Wire the power circuit
Connect the motor to the switch/controller and power source with proper insulation. Include a fuse and a test lead for early danger detection. Keep all wiring away from hot surfaces.
Tip: Double-check polarity before first power-on. - 6
Initial bench test
Power the unit at a low setting and observe rotation, noise, and airflow. Look for air leaks and verify that dust is being drawn through the intake into the chamber.
Tip: Use this test to confirm the path before sealing the housing. - 7
Optimize for airflow
If suction is weak, re-route ducts to shorten bends and increase cross-sectional area where possible. Add a cyclone separator to reduce filter load if available.
Tip: Aim for a smooth, direct path with minimal turbulence. - 8
Final assembly and safety check
Seal the housing, secure all screws, and attach a safety ground if required. Perform a final power-on test in a controlled area and ensure no parts become hot during operation.
Tip: Do a quick burn-in test for 10 minutes with no debris to confirm stability.
FAQ
Is a DC motor vacuum suitable for pet hair on carpets?
A DC motor vacuum can handle pet hair on carpets if you select a motor with enough torque and pair it with a cyclonic dust separator and a fine filtration stage. To maximize results, use a larger intake and a strong suction path designed for hair.
A DC motor setup can handle pet hair on carpets if you choose the right motor and filtration.
What voltage is safe for a DIY DC motor vacuum?
Safe voltage depends on the motor you choose. Start with a lower voltage for testing, and ensure the power source can supply the needed current without overheating. Avoid bypassing safety features.
Start with a lower voltage and verify current draw before full-power tests.
Do I need a cyclone separator?
A cyclone separator reduces filter loading by separating heavier debris from the airstream before it reaches the filter. It improves longevity and suction stability, especially with pet hair.
A cyclone helps keep filters cleaner and suction strong longer.
Can I reuse a motor from an old device?
Reusing an old motor is possible if you verify its condition, voltage compatibility, and shaft integrity. Ensure the motor’s RPM, torque, and current fit your design and that it can be safely mounted.
You can reuse an old motor if it meets the specs and is safe to mount.
How does DIY vacuum performance compare to store-bought units?
DIY builds can match basic cleaning performance for light tasks but may lag behind commercial vacuums in suction power, runtime, and filtration efficiency. They excel in customization and learning, not mass-market power.
It can be good for learning and light tasks, but store-bought models often have higher raw suction and efficiency.
Watch Video
The Essentials
- Plan thoroughly before cutting or mounting parts
- Balance motor power with filtration to optimize suction
- Seal all joints to prevent dust leaks
- Use safety gear and follow electrical precautions
- Expect DIY performance to be task-specific, not a direct substitute for premium vacuums
