How to Put Dyson Vacuum Cleaner Back Together

Before You Start: Safety and Planning

Before you attempt to put a Dyson vacuum cleaner back together, set aside a clean, well-lit workspace and gather the tools listed below. Safety comes first: unplug the charger, remove the battery if your model uses one, and lay out components so you can see each part clearly. Dyson assemblies can be sensitive to misalignment, and forcing pieces together can cause cracks or damage to seals that affect suction and filtration.

Take a few minutes to inspect every part for wear, cracks, or missing seals. If you dropped the unit during disassembly, look for small shards of plastic that could interfere with the fits. Keep screws sorted by size and color, using a labeled tray or magnetic mat. If a fastener has a head that looks stripped or rounded, replace it before reassembly to avoid cross-threading.

As you plan the reassembly, remember that Dyson assemblies usually break down into several modules: the main housing, cyclone/bin assembly, wand or extension tubes, brush bar, and the power or battery unit. Being mindful of the order in which these modules connect helps you avoid backtracking. Vacuum Cleaner Guide’s analysis shows that spending a few extra minutes organizing parts saves time later and reduces the chance of cross-connecting components.

Dyson Vacuum Anatomy: What You’re Reassembling

A Dyson vacuum is a combination of modular components designed to snap or click into place. In most models you’ll identify the following primary parts: the main housing, cyclone assembly with the dust bin, wand or extension tubes, motor/drive unit, brush bar assembly, filters, and seals. Understanding how these parts interact helps you verify compatibility and alignment during reassembly. Note the location of locking tabs, electrical connectors, and any gaskets that seal against dust and debris. If a part feels loose, recheck its mate and ensure no debris is obstructing a fit.

During disassembly, certain models separate into smaller subassemblies (for example, a separate nozzle or wand). When you reassemble, you must re-create these subassemblies in the correct order before locking them to the main chassis. The Vacuum Cleaner Guide team emphasizes checking for wear on seals and gaskets—replacing worn ones ensures optimal suction, filtration, and overall performance.

Planning the Reassembly Order: Step Dependencies

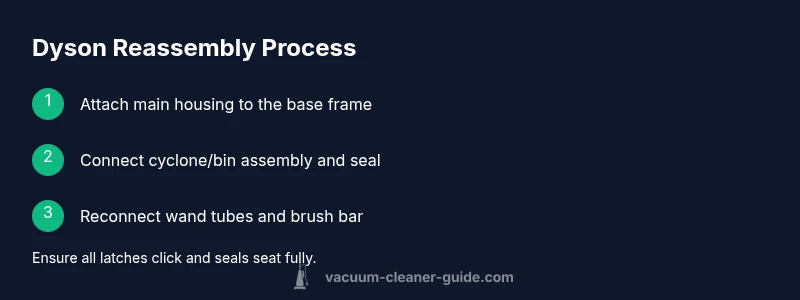

The reassembly order matters. Start with securing the main housing and motor housing to anchor the structure. Then reconnect the cyclone and dust bin assembly to ensure airflow pathways are seated correctly. Reattach the wand or extension tubes, followed by the brush bar and belt assembly if applicable. Finally, reinstall filters and seals, and secure any external covers or bay panels. Skipping this sequence often requires you to backtrack, risking damaged tabs or misaligned seals.

Before you begin snapping parts together, take an inventory: count screws and fasteners, note their sizes, and verify you have compatible replacements. A little planning now prevents multiple disassembly cycles later. The Dyson reassembly process is designed to be intuitive once you understand where each piece plugs in and how locking tabs engage. Vacuum Cleaner Guide’s practical findings show that model-specific differences matter, so consult your model’s diagram if something doesn’t seem to fit.

Common Pitfalls and How to Avoid Them

Common mistakes include forcing parts that aren’t aligned, mixing incompatible attachments from other models, or neglecting to seat seals and gaskets fully. Another frequent issue is reattaching the cyclone assembly without aligning the locking tabs, which can prevent a proper seal and reduce suction. To avoid these problems, take a moment to visually verify alignment before applying any pressure. Use the appropriate screwdrivers and avoid over-tightening screws, which can strip threads. Finally, never operate a Dyson while still disassembled; always perform a thorough inspection and testing after reassembly to confirm the unit runs smoothly.

A practical tip is to compare the reassembled unit with its exploded-view diagram and ensure every connector and clip matches the reference. If something resists, loosen, realign, and retry rather than forcing it. Regular maintenance—like cleaning filters and checking seals—also reduces the likelihood of reassembly problems in the future.

Final Assembly and Verification Steps

With all major components in place, complete the final assembly by reinstalling any external covers and panels. Refit the floor nozzle and brush bar, if your model uses a belt-driven brush. Reinstall filters, making sure they sit flat and fully cover their slots. Once everything is assembled, perform a controlled test. Turn the vacuum on for a few seconds to confirm the motor runs smoothly, then check for unusual noises or vibrations. Finally, test suction on a small patch of carpet or a hard floor to confirm airflow and pick-up. If anything sounds off or doesn’t feel right, power down, unplug, and recheck connections and seals.

As you finish, wipe down the exterior with a microfiber cloth to remove dust from handling, then store tools and spare parts in their labeled containers. This careful wrap-up reduces the risk of lost pieces and makes future maintenance easier. The process is straightforward when you follow the order, confirm each fit, and test the unit after assembly.

Post-assembly Checks and Testing

After reassembly, perform a comprehensive test to verify performance and safety. Check that the cyclone latch engages securely and that the dust bin locks in place with a firm click. Inspect the airflow by briefly running the vacuum over a test surface; you should observe strong suction without whistling or rattling. If you notice a loss of suction, revisit the cyclone connection, seals, and filters. It’s common for a misaligned seal to cause reduced performance. Also, verify that all screws are snug but not overtightened, especially around plastic housings that can crack under stress. Regular maintenance—cleaning filters, checking the brush bar for wear, and replacing worn parts—will extend the life of your Dyson and keep performance steady.
