How to Fix Vacuum Cleaner Roller Not Spinning
A thorough, step-by-step guide to diagnose and fix a vacuum cleaner roller that won’t spin, covering belt checks, debris removal, tester tips, and preventive maintenance for homeowners and pet owners.
To fix a vacuum cleaner roller that won’t spin, start by unplugging the unit and inspecting the brush roll, belt, and housing for obstructions. If the belt is loose, cracked, or worn, replace it with the correct model. Clear any hair, threads, or debris from the roller and bearings, and ensure the belt seats properly. Reassemble and test on a low-pile carpet before full use.
Why the roller stopped spinning and how Vacuum Cleaner Guide helps
A roller that won’t spin is usually a signal that the path between the motor and brush bar is blocked or worn. Debris like hair, threads, and dust can wrap around the shaft and roller, increasing friction or stopping rotation entirely. In many cases, the issue isn’t the motor but a simple belt problem or a stuck brush due to clutter. By understanding the common failure points, you can diagnose safely and efficiently. The Vacuum Cleaner Guide team emphasizes that most fixes are mechanical maintenance tasks, not electrical repairs. This guide walks you through practical, model-agnostic steps to identify and resolve the root cause while keeping your vacuum cleaner in peak condition.
Quick checks you can perform before disassembly
Before you tear the machine apart, do quick checks that can save time and prevent unnecessary disassembly. Make sure the unit is unplugged and the switch is off. Check that the floor brush is free of hair and yarn; remove visible obstructions by hand. Gently rotate the roller with your fingers if safe to assess resistance. If you hear grinding, grinding sounds, or a squeal, stop and reassess—the problem may be a worn belt or misaligned components. These quick checks establish a baseline and help you decide whether you can fix it at home or need professional service.
How to safely clean and clear the roller housing
Cleaning the brush roll and housing can remove the majority of spin issues. Start by removing the brush cover and roller, using the appropriate screwdriver. Use a comb or scissors to cut away hair and fibers tangled around the shaft. Wipe the roller and housing with a lint-free cloth; avoid soap that can leave a residue. For stubborn debris, use a small brush or compressed air held away from bearings. Thorough cleaning not only restores rotation but also improves suction performance.
Inspecting the drive belt, pulleys, and gears
If the belt appears stretched, cracked, or broken, replacement is almost always necessary. Inspect belt alignment in the belt groove; a misaligned belt will slip or skip instead of driving the roller. Check pulleys for glazing or glaze buildup that reduces traction; clean or replace as needed. If the motor turns but the roller doesn’t, the belt or pulleys are the most probable culprits. Always replace with a belt compatible with your model and ensure it seats fully in the groove.
Reassembly, safe testing, and initial runs
With parts cleaned and belts replaced, reassemble the housing in the reverse order of disassembly. Tighten screws securely, but avoid over-tightening plastic housings. Plug the unit in and perform a low-speed test on a bare floor or a throw rug to listen for odd noises. If the roller spins smoothly but stalls under load, recheck belt tension and pulley seating. Document any persistent issues so you can decide whether to replace the roller or seek professional help.
When to replace parts and what to buy
If the belt shows wear, replace it; if the brush roll is worn or gouged, replace the roller. Worn bearings or a bent shaft are indicators that a component replacement is due. Keep model-specific part numbers handy and shop for OEM or trusted aftermarket parts to ensure compatibility. In some cases, upgrading a worn brush roll to a higher-efficiency design can improve performance on pet hair and long hair clogs.
Preventive maintenance to extend roller life
To prevent future spin issues, schedule regular maintenance: clean the brush roll after each use, check belt tension every 2–3 months, and inspect for wear or glazing on belts. Keep the roller housing free of moisture and dust; use a microfiber cloth for routine wipes. Avoid running the vacuum over tangled cords or long hair, which can wrap around the shaft. A consistent maintenance routine reduces downtime and keeps suction strong.
Model-specific considerations and when to seek help
Some brands require specific belts or brush design. Always consult your user manual for model-specific instructions before disassembly. If the roller still won’t spin after belt replacement and thorough cleaning, it may be a motor or bearing issue beyond DIY scope. In those cases, seek professional repair or contact the manufacturer for service options.
Tools & Materials
- Phillips head screwdriver (#2)(Used to remove base cover screws and brush cover.)
- Flathead screwdriver(Helpful for prying the cover if screws are recessed.)
- Replacement drive belt(Order by model number to ensure correct fit.)
- Needle-nose pliers(Use to tease out hair from tight spots.)
- Small brush or old toothbrush(For cleaning lint and hair from crevices.)
- Cleaning cloth(Lint-free and dry for best results.)
- Compressed air can(Blows out dust from hard-to-reach areas.)
- Replacement brush roller(Optional if the current brush is badly worn.)
- Anti-static wrist strap(Helpful for sensitive electronics, optional.)

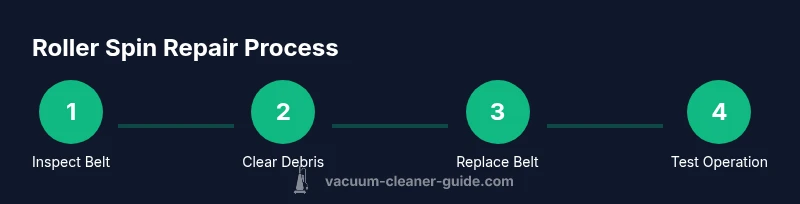

Steps
Estimated time: 60-90 minutes
- 1
Power off and unplug
Ensure the vacuum is unplugged from the wall outlet and switched off. This basic safety step prevents electric shock while you work. If your unit has a detachable power cord, remove it completely before starting.
Tip: Double-check the outlet is not controlled by a wall switch or power strip that could be off. - 2
Remove the brush cover
Use the appropriate screwdriver to remove screws securing the brush cover. Gently lift the cover to expose the brush roll and belt. Note the placement of each screw to simplify reassembly.
Tip: Take a quick photo of screw placement before removal for reference. - 3
Inspect and clear obstructions
Carefully rotate the brush roll by hand to feel for resistance. Remove hair, fibers, and lint wrapped around the shaft with fingers or a brush. Pay attention to the belt area where debris can bind the belt.
Tip: Work in small sections to avoid tangling fresh debris into the belt path. - 4
Check belt tension and condition
Look at the belt for cracks, glazing, or slack. A stretched belt will slip and fail to drive the roller. If damaged, replace the belt with the model-appropriate part and ensure it sits fully in the belt groove.
Tip: Stretch the belt gently along its length to test elasticity without forcing it. - 5
Remove and replace the belt if needed
If replacement is necessary, remove the old belt and route the new belt around the motor pulley and brush roll. Confirm the belt sits evenly in both grooves and has no twists.
Tip: Align belts with the channel grooves to prevent slippage during operation. - 6
Inspect motor shaft and gears
Check for any unusual wear, misalignment, or bearing play. If you notice grinding or a rough feel, stop and reassess—the bearings or gear train may require professional service.
Tip: Use a flashlight to illuminate tight areas and avoid applying lubricant to belts or bearings unless specified by the manufacturer. - 7
Reassemble the housing
Reconnect the brush cover and secure screws in their original positions. Avoid overtightening screws to prevent cracking plastic housings.
Tip: Gently press the cover to ensure it seats evenly before tightening screws completely. - 8
Test run on a safe surface
Plug the unit back in and run at a low speed on a non-carpet surface to verify the roller spins. Listen for smooth operation and absence of unusual noises. Switch to higher settings if applicable and monitor performance.
Tip: Test on a switchable surface (hard floor first, then carpet) to gauge suction and spin across materials. - 9
Decide on further action if needed
If the roller still won’t spin after cleaning and belt replacement, the problem may be motor or bearing related. Consider professional repair or model-specific service options from the manufacturer.
Tip: Keep a note of model numbers, part numbers, and observed symptoms to share with a technician.
FAQ
What are the most common causes of a non-spinning roller?
The most frequent culprits are a worn or stretched belt, hair or lint tangled around the roller, and debris in the belt path. A misaligned pulley or a damaged brush can also prevent rotation. Start with the belt and debris before considering internal motor issues.
Common causes are belt wear, hair buildup, and debris in the belt path. Start with those first.
Can a stuck roller be fixed without replacing the belt?
Yes, if debris is the issue, cleaning the roller and belt path can restore rotation. If the belt appears intact but loose, re-seat and tension it correctly. If the problem persists after cleaning, a belt replacement is likely needed.
Sometimes cleaning fixes it, but often the belt replacement solves the issue.
Is a noisy roller a sign of impending failure?
A loud or grinding roller often indicates bearing wear or a misaligned belt. If you hear unusual sounds after cleaning and belt replacement, stop and inspect components more closely or seek help.
Noise can signal worn bearings or a misaligned belt; check those parts first.
How often should I replace the belt?
belt life depends on usage but inspect for wear every few months. Replace if cracked, stretched, or glazed; a fresh belt usually restores smooth rotation and improves suction.
Check for wear every few months and replace when damaged.
When should I seek professional repair?
If the motor spins but the roller does not, or if you hear grinding after attempting belt changes and cleaning, professional service may be needed. Complex motor or bearing issues require trained technicians.
Consider professional repair if the problem persists after at-home fixes.
Watch Video
The Essentials
- Unplug before any work begins.
- Belt wear and debris are the top causes of non-spinning rollers.
- Clean the roller and housing to restore function.
- Test the unit after reassembly and service if needed.
