How to Fix a Vacuum Cleaner Brush: A Step-by-Step Guide
A practical, step-by-step guide to fix a vacuum cleaner brush. Learn safety checks, hair removal, belt inspection, and maintenance tips to keep pets and homes clean.
Learn how to diagnose and fix a vacuum cleaner brush that won’t spin. This guide covers safety checks, hair removal, belt inspection, brush cleaning, and reassembly for common upright, canister, and handheld models. By the end, you’ll know what to replace, how to test the brush, and how to prevent future jams.
Why the vacuum cleaner brush stops spinning
The beater brush is a key component in most vacuums, delivering agitation that helps lift dirt. When it stops rotating, you’ll notice reduced pick-up and visible buildup along the brush and housing. In many cases, the fix is simple: remove hair and fiber tangles, clear blockages, and re-seat the belt if needed. The phrase how to fix vacuum cleaner brush may seem intimidating, but with careful safety steps and the right tools, most homeowners can restore function in under an hour. Vacuum Cleaner Guide’s perspective emphasizes a methodical approach: verify power, inspect the brush and belt, clean adhesions, and then test before reassembling. This reduces the risk of further damage and speeds up subsequent cleans.
Quick diagnostic checks to save time
Before you start disassembly, perform quick checks. Unplug the unit, then manually rotate the brush to see if it spins freely. Listen for rough sounds that indicate a snag or a failing belt. Look for hair, fibers, or carpet threads wrapped around the brush shaft or underneath the housing. If the brush is stiff or sticky, there may be grime on the bearings or a clog in the intake duct. These observations help you decide whether you’ll need simple hair removal, a belt replacement, or a deeper brush-roll service.
Disassembly basics and model differences
Most upright and canister vacuums use a small set of fasteners to access the brush roll, while handheld models may require fewer steps. Start by unplugging, then removing the bottom plate or access cover. Use a Phillips screwdriver to loosen screws, keeping them in a labeled container. Once open, you’ll see the brush roll, belt, and guides. Note how the belt sits around the motor pulley and brush wheel—the exact routing varies by model. If your unit has a separate belt guard or end cap, inspect it for wear and replace if cracked. Document your steps with photos so you can reassemble correctly.
Cleaning the brush and inspecting the belt
Carefully pull away any hair with your fingers, then cut persistent tangles with scissors. A nylon brush or old toothbrush helps lift embedded debris from bristles. Wipe the brush and surrounding parts with a damp cloth and a small amount of mild detergent if needed; avoid soaking. Let all parts dry fully before reassembling. Check the belt for cracks, fraying, or glazing; a worn belt will slip and reduce agitation. If you replace the belt, orient it the same way the old one sat to ensure smooth operation.
Reassembly, testing, and model-specific notes
Reattach the brush roll, route the belt, and secure the end caps. Replace the bottom plate or access cover, then plug the vacuum back in and run it on a low setting to confirm rotation. If the brush still won’t spin, double-check belt tension and check for debris in the pulley area. Some models use a different drive system that requires replacement of the brush roll as a unit. For pet owners, consider upgrading to a brush designed to minimize hair wrapping. Vacuum Cleaner Guide recommends following your user manual for model-specific instructions and parts.
Authority sources and further reading
These sources provide general guidelines for safe handling of household appliances, maintenance routines, and electrical safety. Always unplug before service; use appropriate tools; test after reassembly. For more detail, see the following reputable references:
- U.S. Consumer Product Safety Commission: https://www.cpsc.gov
- University extension service guidance on vacuum maintenance: https://extension.illinois.edu
- OSHA safety guidelines for electrical work: https://www.osha.gov
Tools & Materials
- Phillips screwdriver (PH2)(to remove screws securing the brush housing)
- Needle-nose pliers(to pull hair from tight spaces and guides)
- Scissors or utility knife(to cut hair tangles wrapped around the brush)
- Soft cloth or microfiber towel(for wiping dust and oil from parts)
- Small nylon brush or old toothbrush(to scrub bristles and bearings)
- Replacement belt (if applicable)(carry an extra belt in case of wear)
- Replacement brush roll (if applicable)(for worn bristles or deformities)
- Isopropyl alcohol 70% (optional)(for disinfecting metal surfaces (allow to dry))
- Flashlight(to illuminate dark crevices during inspection)

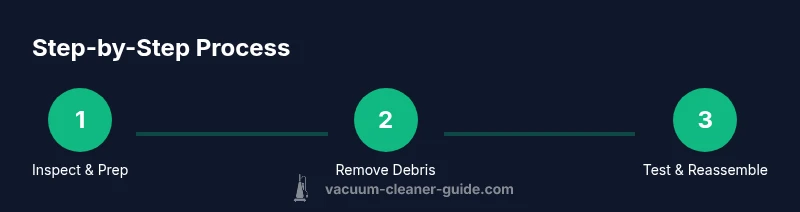

Steps
Estimated time: 25-40 minutes
- 1
Unplug and access the brush cover
Power off the unit and disconnect from the wall. Flip the vacuum to expose the brush housing or bottom plate. Use the screwdriver to remove screws and set them aside in a labeled container. This prepares you for a safe inspection without electric risk.
Tip: Take a photo of the screw layout before removing parts to simplify reassembly. - 2
Rotate the brush to check for freedom
Manually rotate the brush to confirm it spins smoothly or identify places where it binds. If rotation is stiff, hair or fibers may be wrapped around the shaft or inside the housing. This step helps you decide whether to remove material by hand or proceed to deeper disassembly.
Tip: If it sticks, stop and clean the tangles before forcing movement to avoid bending the shaft. - 3
Remove hair and debris
Carefully pull out hair, threads, and lint from the brush and surrounding area. Use scissors to cut through stubborn tangles. Wipe down with a cloth to remove residues. Ensure the area is dry before continuing.
Tip: Keep the brush oriented correctly so you know how it sits when reinstalled. - 4
Inspect and replace the belt if needed
Look for cracks or glazing on the belt. If frayed, cracked, or stretched, replace it with an identical type for your model. Route the belt around the motor pulley and brush wheel exactly as before; incorrect routing will prevent rotation.
Tip: Do not overtighten the belt—slack belt can slip and reduce agitation. - 5
Clean the brush and check bearings
Wipe bristles and metal parts with a damp cloth. If bearings feel gritty, remove debris and apply a tiny amount of lubrication if the manufacturer allows; otherwise avoid oil near the belt area. Let everything dry fully before reassembly.
Tip: Avoid soaking the brush or bearings in water to prevent rust and mold. - 6
Reassemble and test
Reinstall the brush, secure the cover, and reconnect power. Run the vacuum briefly on a low setting to observe rotation and suction. If the brush still won’t spin, recheck belt tension and inspect for remaining debris in the pulley area. Verify model-specific instructions in the manual.
Tip: Test on a small carpeted area first to confirm proper function.
FAQ
Why isn’t my vacuum brush spinning?
Common causes include hair tangles, a worn belt, or debris lodged in the brush housing. Start with a safety check, then clear tangles and inspect the belt. If problems persist, replace worn parts.
If your brush won’t spin, start by unplugging the vacuum, removing hair, and checking the belt; often a worn belt or hair wrap is the culprit.
Can I fix it without disassembling the machine?
Some minor clogs near the intake can be cleared without full disassembly, but most fixes require accessing the brush housing to remove tangles and inspect the belt.
Most fixes require accessing the brush housing to remove tangles and inspect the belt, though minor clogs may be cleared from outside.
How often should I replace the belt?
Belt replacement depends on usage; look for cracks, glazing, or slipping. If the belt shows wear, replace it to restore agitation and suction.
Replace the belt if you see cracks or it slips during operation.
Is it safe to use water on the brush?
Only clean parts with water if the manufacturer allows it. Most brushes dry quickly; never soak the motor or belt areas.
Generally avoid soaking parts; let them dry completely if you use water.
What if the belt isn’t the issue?
If the belt is fine, inspect the brush roll and pulley for damage or obstructions. Sometimes the drive mechanism or bearings need service.
If the belt is fine, check the roller and pulley for damage.
Should I upgrade the brush for pet hair?
For homes with pets, consider a brush with anti-wrap design or higher-traction bristles. This reduces hair tangling and improves cleaning efficiency.
Pet-friendly brushes can reduce tangles and improve performance.
Watch Video
The Essentials
- Unplug before starting any work on the vacuum.
- Remove hair and debris to restore brush rotation.
- Check belt condition; replace if worn or stretched.
- Test rotation and suction after reassembly.
